| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Industrial Laser Marking Equipment | Laser Type: | UV Laser |
|---|---|---|---|
| Working Accuracy: | 0.001mm | Application: | Laser Marking |
| Wavelength: | 355nm | Weight (KG): | 70 KG |
| Key Selling Points: | 3D High Power | Laser Power: | 3w 5w 10w |
| Applicable Material: | Special For Plastic, Glass | Working Area: | 300x300mm(optional) |
| Cooling Mode: | Air Cooling, Water Cooling | ||
| Highlight: | Portable 10w Laser Marking Machine,355nm UV Laser Marker,3W UV Laser Machine |
||

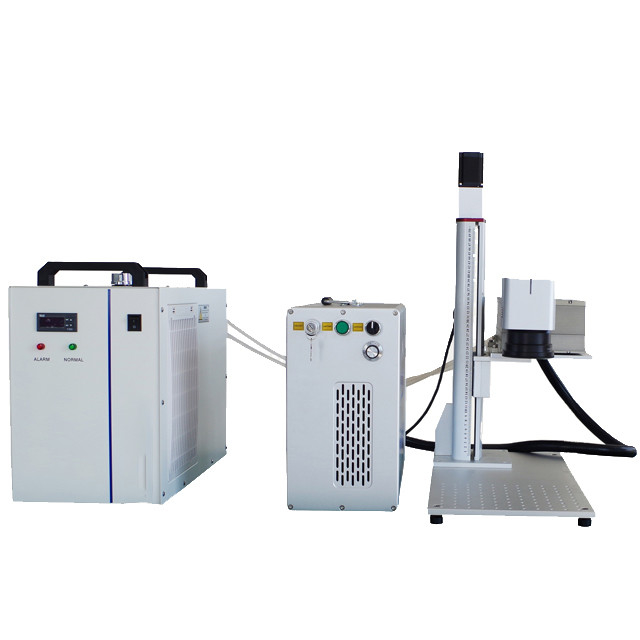

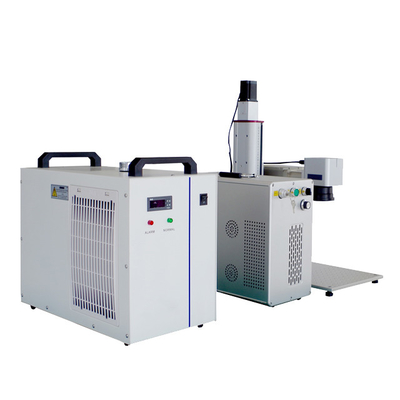

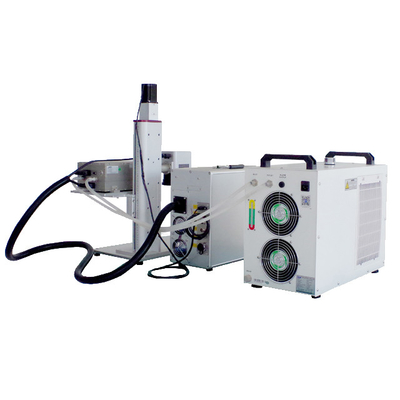

3W 5W 10w Laser Marking Machine
Introduction
Portable UV laser marking machine belongs to a series of products of laser marking machine, but it is developed by using 355 nm Uv laser. Compared with infrared laser, this machine adopts third-order intracavity frequency doubling technology. Compared with infrared laser, 355 Uv focusing spot is very small, which can reduce the mechanical deformation of materials to a large extent and has little heat impact on processing.
Application
Because it is mainly used for ultra-fine marking and carving, it is especially suitable for food and carving. Medical packaging materials marking, microporous, high-speed partition of glass materials and complex graphical cutting of silicon wafers and other applications.
Machine parameters
|
Model |
RF-UV-3w |
RF-UV-5W |
RF-UV-10W |
|
Average output power |
>3W@40kHz |
>5W@60kHz |
>10W@80kHz |
|
Pulse Width |
<10ns@40kHz |
<10ns@60kHz |
<12ns@80kHz |
|
Wavelength |
355nm |
||
|
Pulse Repetition Rate |
30kHz-200kHz |
40kHz-300kHz |
|
|
Cooling way |
Water cooling |
||
|
Machine weight |
About 150kg |
||
|
Graphic format supported |
JPG,BMP,DXF,PLT |
||
|
Working voltage |
AC220v 50hz/AC 110V 60KHZ |
||
