| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Diode Pump Laser Marking Machine | Laser Power: | 50W ( 75W And 100W Optional ) |
|---|---|---|---|
| Marking Scope: | F=160mm(standard) | Laser Wavelengh: | 1064nm |
| Current Adjustment Scope: | 0-25A | Cooling Way: | Water Cooling |
| Laser Marking Speed: | 7000mm/s | Modulate Frequency: | 200HZ-50KHZ |
| Min.line Wideth: | 0.015mm (depend On Material) | Marking Materials: | All Metals And Most Of Nonmetal Materials |
| Highlight: | 50W Diode Laser Marker,Diode Side Pump Laser Marking Machine,100W Diode Laser Marking Machine |
||

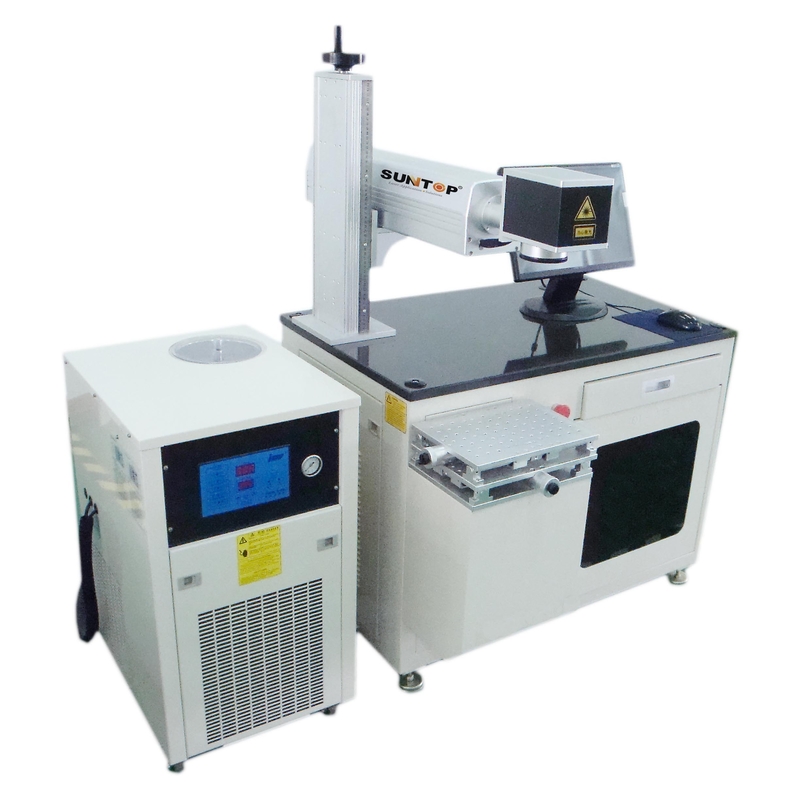

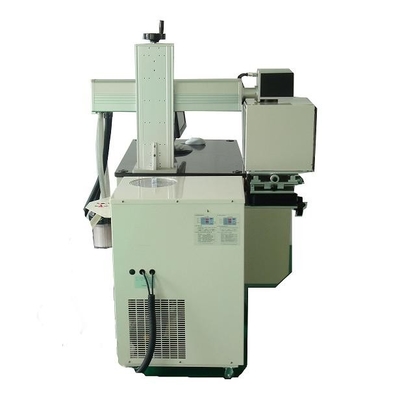

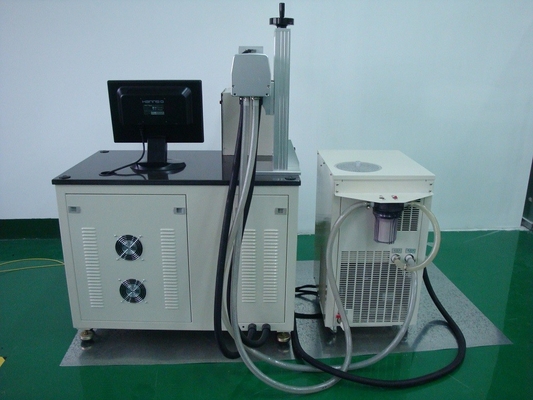

High Precision Diode Laser Marker
1. Machine's main features
Full sealed optical system, maintenance-free, the key components used in all international brand.
Red light positioning, electric lift, low energy consumptio , high precision marking the quality, no demming, marking white, marking black, depth marking, suitable for continuous assemble line work, software can data preservation, traceability and automation of movement, national patent optic sealed design, double rise and down working table.
2. Machine's main technical specifications
|
Whole machine consumption power |
1000W |
|
Marking scope |
F=160mm(standard) |
|
Laser marking speed |
7000mm/s |
|
Laser repeat frequency |
10KHZ-80KHZ |
|
Min.line wideth |
0.015mm (depend on material) |
|
Max.single marking depth |
≤0.3mm (depend on material) |
|
Min. character |
0.1mm |
|
Laser output power |
50W (75W or 100W are optional) |
|
Modulate frequency |
200HZ-50KHZ |
|
Laser wavelengh |
1064nm |
|
Current adjustment scope |
0-25A |
|
Cooling way |
Water cooling |
|
Input voltage |
220V/50-60HZ |
3. Machine's main configurations
|
Model |
ST-DL50 |
|
Galvanometer(Scanner) |
SGS |
|
AO Q-SWITH |
U.K- Gooch Housego |
|
Laser crystal |
Original:∮3 |
|
Cooling system |
SUNRISE,Temperature distinguish rate ±0.1° |
|
Expander lens |
Germany |
|
Reflect lens |
Germany |
|
Q-Switch power supply |
STARS |
|
Computer |
special industrial PC, Color LCD. |
|
Software |
JCZ |
|
AD/DA |
JCZ |
|
Laser source ( optical key parts ) |
American |
|
Power of laser |
50W |
