| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Leather Co2 Laser Marking Machine | Laser Type: | CO2 |
|---|---|---|---|
| Working Accuracy: | Below 0.001mm | CNC Or Not: | Yes |
| Cooling Mode: | Water Cooling | Key Selling Points: | High Accuracy |
| Marking Speed: | 7000mm/s | Laser Power: | 80w-100W |
| Marking Depth: | 0-1mm (according To The Material) | Cooling System: | Air Cooling |
| Marking Speed: | 4000mm/s | Minimum Character: | 1mm |
| Highlight: | 7000mm/s leather laser engraving machine,CO2 leather laser marking machine,100W CO2 Laser Marker |
||

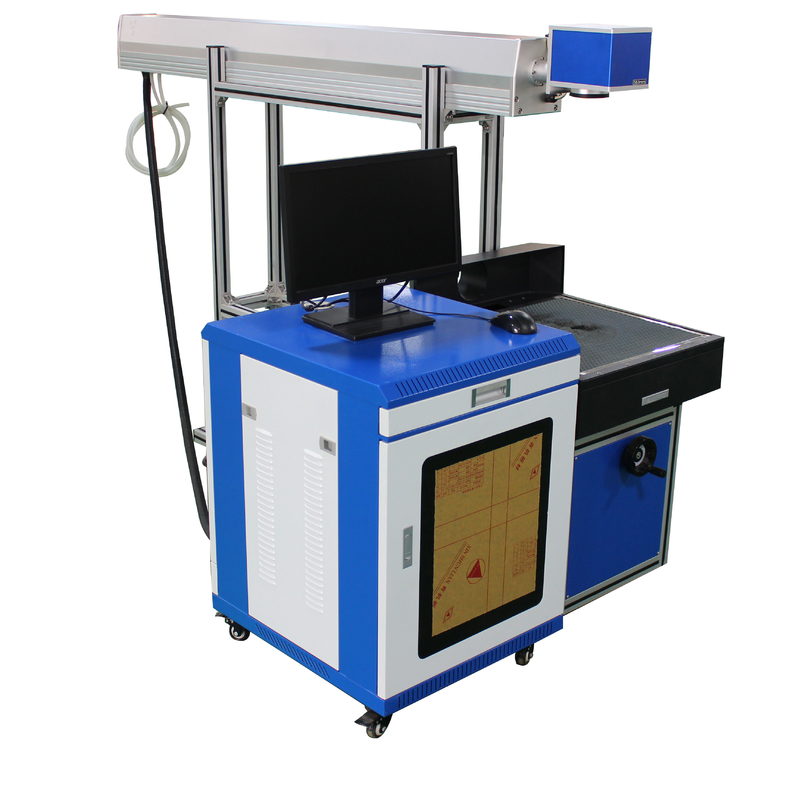

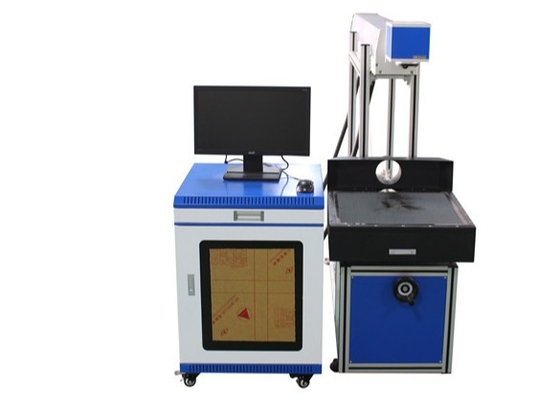

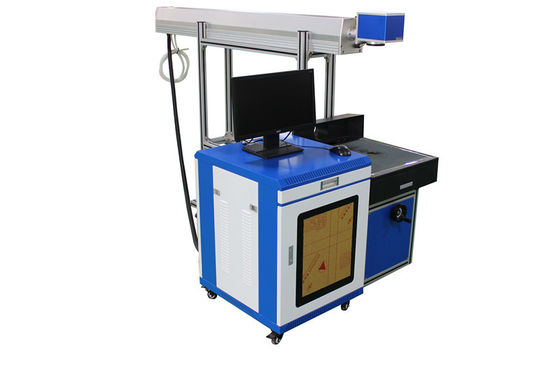

Leather CO2 Laser Marking Machine
The DF series CO2 laser marking machine is equipped with a made-in-China radio frequency laser (metal seal) or a glass laser tube, a fast-speed scanning system with vibrating mirrors and its control system. The CO2 laser marking machine is specially developed for the industries like apparel, leather, artwork and craft and so on to cut and engrave fast on various non-metal materials so as to double the added-value of original products.
Applications
This multifunction laser marking machine is applicable for such non-metal materials as apparel, leather, rubber, wooden board, bamboo, organic glass, ceramic tile, plastics, marble, jade, crystal, cloth, etc. It is often used as wood laser marking machine, bamboo laser marking machine,crystal art craft laser marking machine, cloth laser marking machine, etc.
Features
1. High reliability, long continuous running, clear and complete marking result
2. Compatible with a lot of software, no-touch processing for collecting and making various labels
3. No impact on the surface of original products (high resolution remained)
4. Suitable for engraving on all kinds of materials, easy to install and convenient to maintain
Technical Parameters of CO2 Laser Marking Machine
|
Model |
DF-10/DF-30/DF-60/DF-80/DF-100 |
|
Laser power |
10W/30W/60W/80W/100W |
|
Laser type |
CO2 laser (metal seal) |
|
Machine power |
1.5KW-4KW |
|
Minimum character |
1mm |
|
Repeat position accuracy |
±0.04mm |
|
Marking speed |
4000mm/s |
|
Marking scope |
20*20/30*30/50*50cm (optional) |
|
Operating voltage |
AC220V/11V,30A ,50Hz/60Hz |
|
Cooling type |
Air or water cooling and protection system |
|
Acceptable graphic format |
PLT, PCX, DXF, BMP, AI |
