| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Desktop Fiber Laser Marking Machine | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cooling Mode: | Air Cooling | Laser Power: | 50w |
| Key Selling Points: | Multifunctional | CNC Or Not: | Yes |
| Minimum Character: | 0.15mm | Working Accuracy: | 0.01mm |
| Marking Depth: | 0.01-1.0mm(subject To Mate) | Laser Wavelength: | 1064nm |
| Working Area: | 110x110-500*500mm | Marking Speed: | 0-7000mm/s |
| Highlight: | 50w Desktop Laser Marking Machine,1064nm Desktop Laser Marking Machine,50w Metal Laser Marking Machine |
||

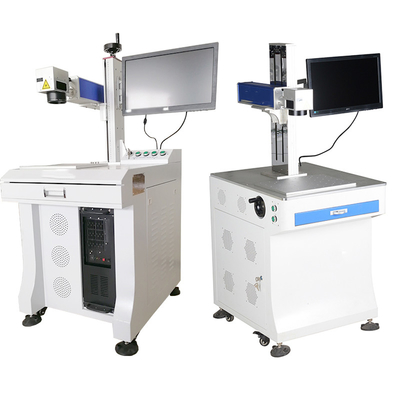

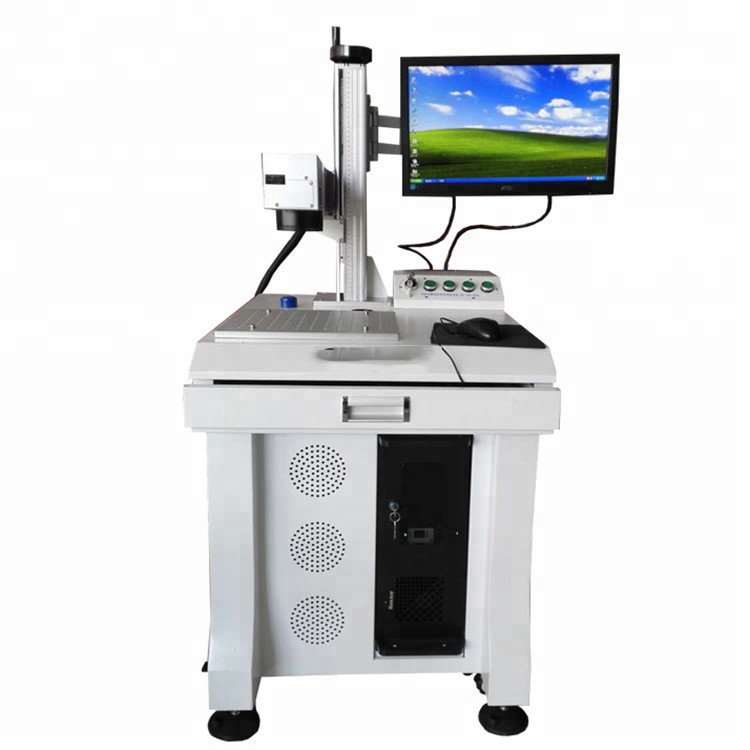

Desktop Metal Laser Marking Machine
Features
1. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction.
2. High pulse repeating rate and stable power bring high speed laser marking.
3. High speed 2-3 times over than traditional diode pumped marking machine.
4. Air-cooling smart machine size!
5. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%
6.Suitable for various fiber laser generators.
Parameter
| Product Name | Metal Fiber Laser Marking Machine |
| Laser Type | Fiber |
| Modol | YLH-20L |
| Certificatons | CE, ISO,OTHER |
| Power | 20W(30W,50W optional) |
| Brand | SUNDOR |
| Country of Origin | CHINA |
| Work Precision | ±0.01mm |
| Support Format | PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX |
| Software | EZCAD |
| Cooling Way | AIR COOLING |
| NC | YES |
| Condition | NEW |
| Warranty | 24 Months |
| Work Area (mm) | 110x110/175x175(Customized) |
| Min Line Width | 0.017mm |
| Min Character | 0.15mmx0.15mm |
| Wavelength | 1064nm |
| After-Service | Engineers available to service machinery overseas |
| Laser Module Life | |
| Laser Repetition Frequency: | 20KHz-80KHz(adjustable) |
| Power Demand | AC220V/50HZ/2A |
| Optimum Working Temperature | 10-35 °C |
| Marking Depth | 0.01-1.0mm(subjejct to material) |
