| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Raycus Laser Marking Machine | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cooling Mode: | Air Cooling | Working Accuracy: | 0.01mm |
| CNC Or Not: | Yes | Marking Area: | 110mm*110mm |
| Weight (KG): | 100 KG | Applicable Industries: | Hotels, Garment Shops |
| Laser Wavelength: | 1064nm | Application: | Laser Marking |
| Core Components: | Motor, PLC | ||
| High Light: | 20w Portable Laser Marker,1064nm Metal Laser Marking Machine,20W Laser Metal Marking Machine |
||

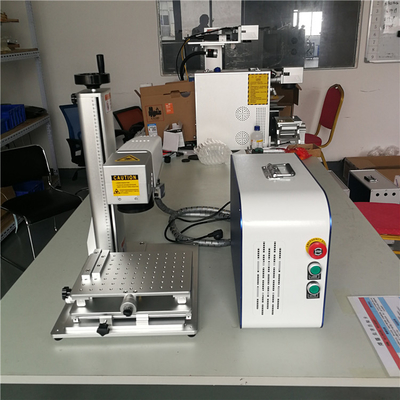

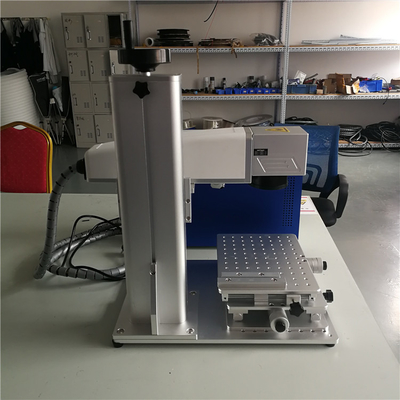

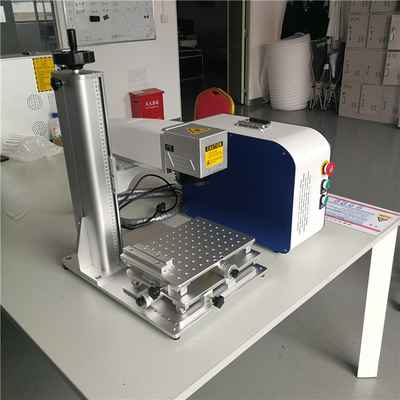

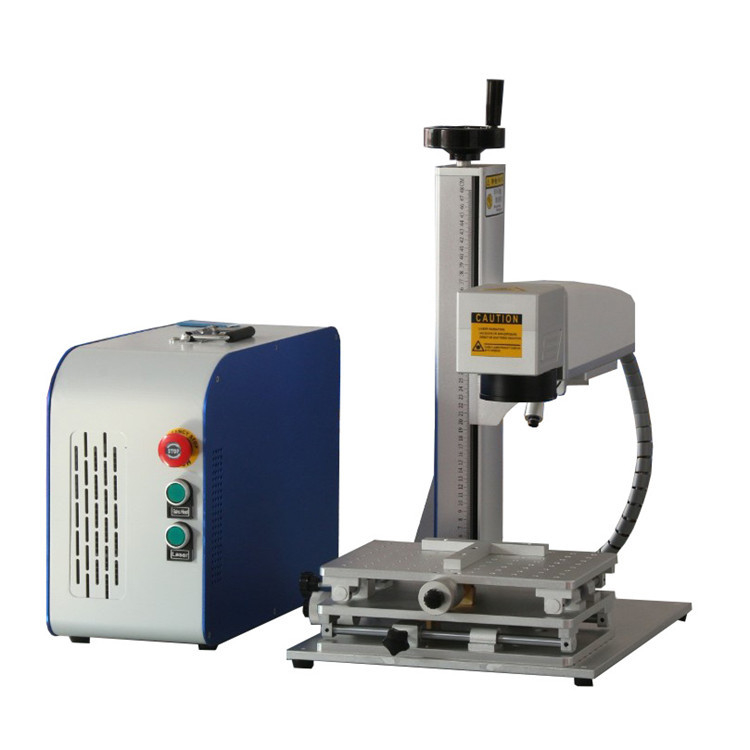

Mini Desktop Portable Laser Marking Machine For Metal
Machine Features
Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics & some plastics
100,000+ hours of laser life, reducing costs and production downtime
Small 19" rack mount footprint makes it easy to integrate with other equipment and existing assembly lines
110mm square mark field (other sizes available)
No consumables and minimal maintenance help reduce operating costs
Mount laser in any orientation
Air-cooled
Real-time visible live pointer for previewing your mark
Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark
Machine Technical Specifications
|
Catagory |
Spec. |
|
Laser type |
Fiber,Ytterbium dopted |
|
Output power |
20W |
|
Power requirement |
220v/110V single ph,50-60HZ |
|
Wavelegth |
1064nm |
|
Operation mode |
Pulsed |
|
Cooling |
Fan Asisted Air Cooling |
|
Scanning method |
XY galvanometer |
|
Approvals |
CE FDA ISO |
|
Warranty |
3 years. |
|
Documentation |
User manual,Online video troubleshooting |
|
Package Dimension |
750x700x650mm(29.5"x27.6"x25.6") |
|
G.W |
66kg(146 Ibs) |
LENS CONFUGURATIONS
|
Lenses |
Marking field |
Focal length |
|
70x70mm |
70x70mm |
100mm |
|
110x110mm |
110x110mm |
165mm |
|
175x175mm |
175x175mm |
254mm |
|
200x200mm |
200x200mm |
310mm |
|
300x300mm |
300x300mm |
419.8mm |
